Industrial Pressure Sensor for Air Compressor System Wide Temperature Range Compact Structure High Impact Resistance
Features
○ Wide Temperature Range,-40℃~135℃
○ Compact Structure with Excellent Cost-Effectiveness
○ Algorithm Compensation and Correction Technology
○ 400% F.S. Overload Resistance Performance
○ High Impact Resistance
○ Multiple Signal Outputs
○ Supports Customization for Various Specifications
Applications
○ Air Compressor System
Description
The 100E series transmitter is a pressure product for air compressors developed completely independently.
The core sensor uses a self-developed ceramic core.
The product is resistant to high temperature,corrosion, high stability, high reliability, high overload pressure,
and high burst pressure. The product is small in size, has excellent overall performance, and
is cost-effective, suitable for the field of air compressor systems.
Specifications
| Model | 100E Series |
| Pressure Type | Gauge Pressure, Negative Pressure, Absolute Pressure |

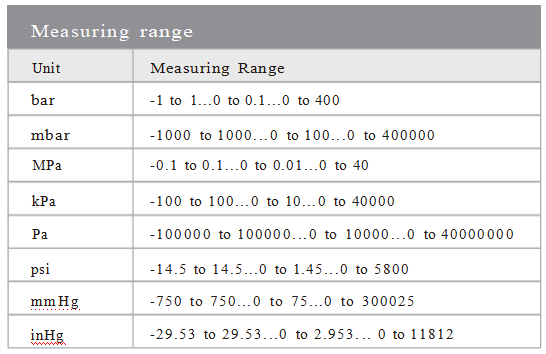

| Range | -1-0-3...70bar (Customizable) |
| Accuracy | ≤±0.50%F.S.(Standard))； ≤±1%F.S；Customizable |
| Electrical Performance | 2-wire | 3-wire |
| Output Signal | 4~20mA | 0~5V | 0~10V | 0.5~4.5V | 10~90% Ratio |
| Supply Voltage | 8~32V DC | 8~32V DC | 12~32V DC | 8~32V DC/5V DC | 3~5.5V DC |
| Operating Temperature | -40℃~135℃ |
| Storage Temperature | -40℃~135℃ |
| Electrical Connection | Aviation connector (DIN72582-1); Customizable |
| Pressure Connection | External Thread | 1/4"-18NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 |
| Customizable | Thread specifications can be customized according to customer requirements |

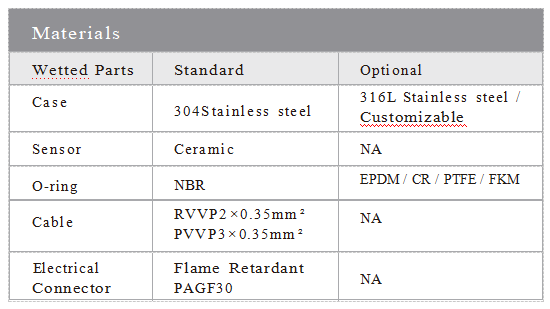

| Materials | Housing | SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable |
| Sensor | Ceramic flat film (Standard) |
| O-ring | NBR (Standard), PTFE/CR/EPDM (Optional) |
| Protection Rating | IP65,IP67,Customizable |
| Response Time | ≤20ms |
| Overload Pressure | 400%F.S. |
| Long-term Stability | 0.1%F.S.±0.05%/year |
| Burst Pressure | >600% F.S. |
| Insulation Resistance | >100M Ω @50V DC |

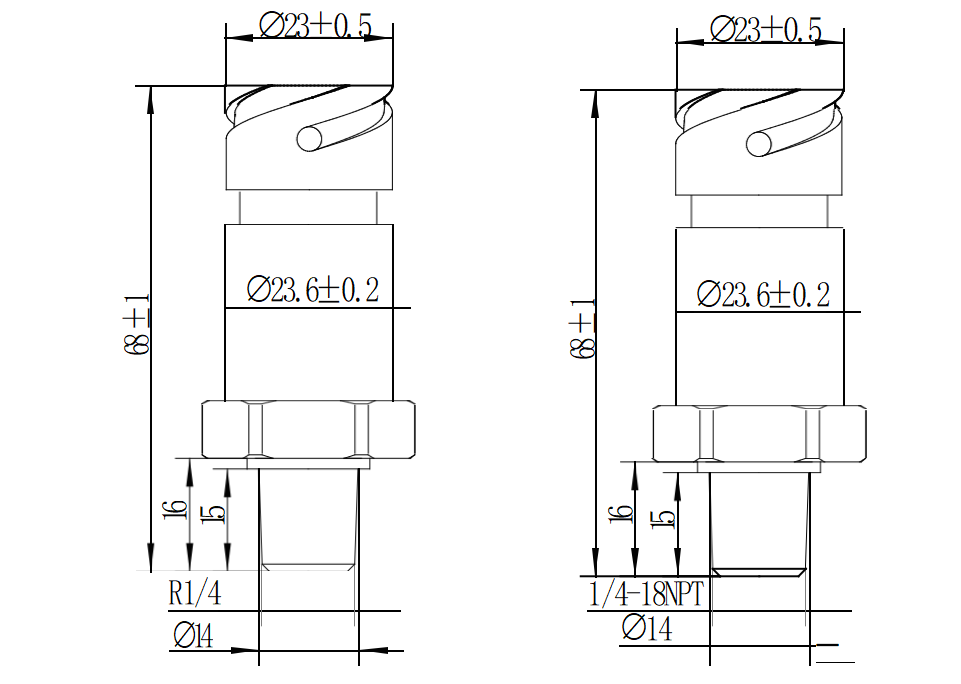

Dimensions and Wiring Definitions
Wiring Definitions
Ordering Guide
FAQ
Q1: What makes Songfast's products stand out from competitors?
A: Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.
Q2: What official certifications and industry compliance standards has the company obtained?
A: Our certifications include:
- ISO 9001
- IATF 16949 (automotive)
- ISO 45001 (safety)
- ISO 14001 (environmental)
We also hold over 20 national patents.
Q3: Do you offer custom development for new products beyond your website offerings?
A: Yes, our company provides custom development services to meet specific customer needs.
